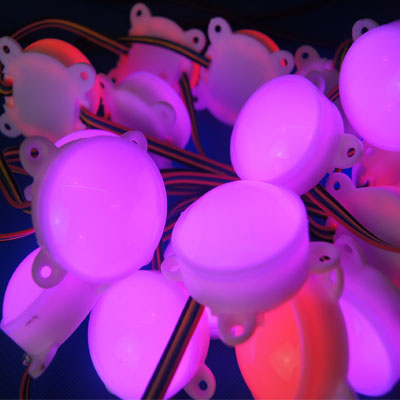

DC12v Dome Acryllc 45mm ws2801 pixel dot
DC12v Dome Acryllc 45mm ws2801 pixel dot
Product Description:

    DC12v Dome Acryllc 45mm ws2801 pixel dot

Mode: D45S5050RGB3T-2801-12V

Parameter


1. Input DC12v, 0.72watts/pcs

2. 1pcs module is drove by 1pcs ws2801 IC

3. 3 × SMD5050 RGB per module, Epistar chips

4. 20pcs/string, wire length = 10cm

5. PCB size: Diameter=45
mm

6. D5mm hole for installation

7. 4 wires out:

        Red:
DC12v
        Yellow:  Data
        Green:  CLK
        Black:   GND


Overview:

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 3 RGB LEDs and a controller chip soldered to a PCB--ws2801. Two metal flanges on the side and a 5mm diameter hole in the middle  to screw them directly onto a surface.
The total max brightness of all LEDs is about 6000mcd.

The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.

Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller.
