DMX-SPI decoder 512 channels ws2801/2811/LPD8806/TM1809
DMX-SPI decoder 512 channels ws2801/2811/LPD8806/TM1809
Product Description:

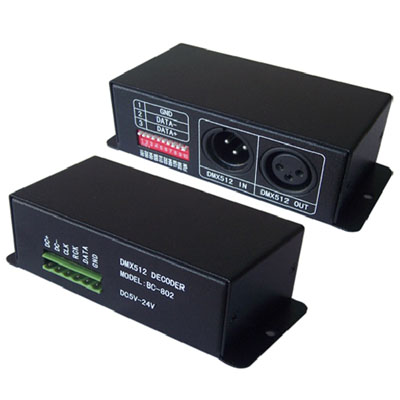

DMX-SPI decoder 512 channels for ws2801/ws2811/LPD8806/TM1809/lpd6806
Mode: D802

Overview

DMX-SPI decoder, used for signal conversion:   DMX512 signal Input (A/B/GND)    TTL signal output.  1pcs of decoder has 512 channels, so it can drive MAX 170 RGB pixels( 512/3 ). It support DMX512/1990 protocol.


Support IC:

      IC                Mode
WS2801:  SPI-DMX-ws2801 (support: ws2801/ws2803)

WS2811 : SPI-DMX-ws2811 (support: TM1803/TM1804/TM1809/TM1812/UCS1903/UCS1909/UCS1912/UCS2903/UCS2909/UCS2912/WS2811)

    P9813:  SPI-DMX-9813

LPD8806:  SPI-DMX-LPD8806 (support: LPD8803/LPD8806)

LPD6803:
SPI-DMX-LPD6803
(LPD6803/LPD1101/D705/UCS6909/UCS6912)

TLS3001:  SPI-DMX-tls3001  (tls3001/tls3002)


Parameter

1. DC5-24v

2. Size: 125*52*40mm, 300g/pcs

3. 10 DIP switches to set DMX address from 1 - 512

4. CLK, DATA, GND output

5. Inbuilt testing programs.


Please download the specification at:
https://app.box.com/s/xsei0esfj0bu31uoqmw8
