T-1000s controller

T-1000s SD card controller

Product Description:

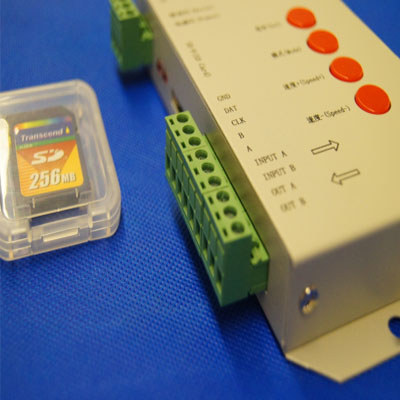

T-1000s SD card controller
T-1000S

Overview

T-1000s is a SD card programmable LED controller, it can control MAX 2048 pixels, and support almost all kinds of IC, such as ws2801, lpd8806, ws2811, ws2812, ws2812b, ucs1903, TM1803, tm1809, DMX512, etc. Controlling LEDs by programs which stored in the SD card, programmed by software of ledEdit.

Support IC type	Module in LED Edit software	Pixel numbers	Remark
LPD6803, D705, 1101, 6909, 6912	T-1000-6803	2048 pixel
LPD8806, LPD8809	T-1000-8806	2048 pixel
TM1803, TM1804, TM1809, TM1812	T-1000-TM	2048 pixel	TM1804 and TM1809 low speed and high speed
TM1903, TM1904, TM1909, TM1912	T-1000-TM19	2048 pixel
UCS6909, UCS6912, UCS7009, UCS5903	T-1000-UCS-32	2048 pixel
UCS1903, UCS1909, UCS1912	T-1000-UCS-256	2048 pixel	low speed and high speed
UCS3903	T-1000-UCS-1024	2048 pixel
DMX512	T-1000-DMX	170/512 pixel	Compatible DMX512
WS2801, WS2803	T-1000-WS	2048 pixel
WS2811	T-1000-WS2811	2048 pixel	low speed and high speed
DS189	T-1000-DS189	2048 pixel
TLS3001, TLS3002, TLS3008	T-1000-TLS	* pixel
P9813	T-1000-P9813	2048 pixel
SM16715	T-1000-SM16715	2048 pixel	low speed and high speed
SM16716	T-1000-SM16716	2048 pixel
BS0901, BS0902	T-1000-0901	2048 pixel
BS0815	T-1000-0815	2048 pixel

Features:

1. 256 Gray, Gamma correction processing software;

2. Support the line, matrix and special-shaped modelling;

3. Off-line control, play back content stored in the SD card;

4. T-1000s store a maximum of 16 documents/programs;

Note:
A: The model T-1000S with one port output, When it control 512 pixels the speed can reach 30fps, more than 512 pixels, the frame speed will be slow down automatically

B: T-1000S support multi-machine Synchro Function via A/B in/out ports.

Connection diagram:

7.5V-24V	DC power input, to provide two sets of power input, select a group can be.
5V	Power Ground.
GND	Error indicator
ERROR	Power LED
POWER	SD card slot
SD CARD	Output CLK
CLK	Output DATA
DAT	Signal Ground
GND
B A	Compatible with DMX signal, differential A, and differential B
GND	Signal Ground

Regulatory function button:

SET	Save Settings to save current settings file and the playback speed
MODE	Switch File
SPEED+	Speed up the playback speed
SPEED-	Slow down the playback speed

System architecture diagram

Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led

Physical parameters:
. Weight:0.4 kg
. Size:122mm*67mm*25mm
. Temperature :-40-85 celsius
. Volgate: DC 5V / DC 7.5-24V
. Power:2W

Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.
