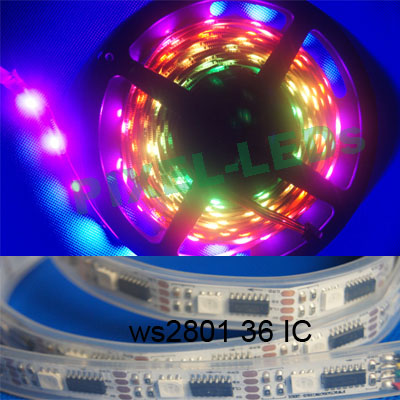

5v 36 LEDs/m 36 IC ws2801 LED strip
5v 36 LEDs/m 36 IC ws2801 LED strip
Product Description:

DC5v 36 LEDs/m 36 IC/m ws2801 digital pixel strip lights

Parameter:

1. DC5v, 11w/m

2. 36 LEDs/m, 36 pixels/m

3. 36pcs ws2801 IC, 1 IC drives 1 LEDs as 1 segment

4. ws2801 IC, grey scale= 256/color, 24 bits for RGB

5. SMD5050 RGB, Epistars chips

6. 4-PIN connectors on both ends

7. DC5V, CLK, Data, GND.


IP rating Protection Outer Size Installation Mode
IP40 None L5000*W11 Double side tape BW5050RGB36T-2801-5v
IP65 Glue coating L5000*W11 Double side tape DW5050RGB36T-2801-5v
IP67 Silicone tube L5000*W12 screw + buckle TW5050RGB36T-2801-5v
IP68 Tube +glue filled L5000*W12 screw + buckle JW5050RGB36T-2801-5v

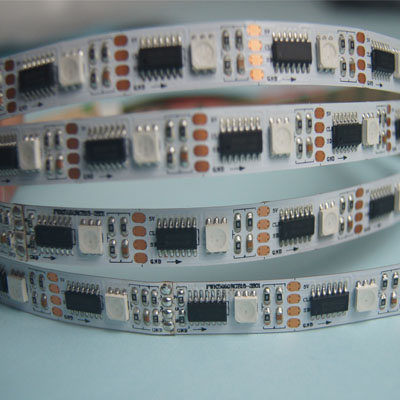

This ws2801 pixel strips including 36 LEDs/m, 5meters/roll, each LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.

It is widely used for creating LED dispaly to show test and animation.
