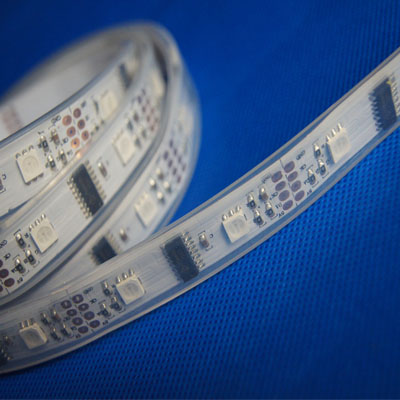

5v 32 LEDs/m LPD8806 LED strip
5v 32 LEDs/m LPD8806 LED strip
Product Description:

DC5v LPD8806 32 LEDs/m strip lights
Mode: BW5050RGB32T-8806-5V
Overview

LPD8806 pixelpusher 32 LEDs/m, 16pcs IC per meter, each LED be used as a pixel and individually controllable, can be cut off each 2 LED. Very quick data speed: 20MHz. Widely controlled by Arduino / Rasberry.


Parameter:

1. DC5v, 10w/m

2. 32 LEDs/m, 32 pixels/m

3. 16pcs LPD8806 IC, 1 IC drives 2 LEDs as 1 segment

4. LPD8806 IC, grey scale= 128/color, 21 bits for RGB

5. SMD5050 RGB, Epistars chips

6. 4-PIN connectors on both ends

7. FPCB width: 14MM

8. DC5V, CLK, Data, GND.


IP rating Protection Outer Size Installation Mode
IP40 None L5000*W14 Double side tape BW5050RGB32T-8806-A
IP65 Glue coating L5000*W14 Double side tape DW5050RGB32T-8806-A
IP67 Silicone tube L5000*W16 screw + buckle TW5050RGB32T-8806-A
IP68 Tube +glue filled L5000*W16 screw + buckle JW5050RGB32T-8806-A
