5v 48 LEDs LPD8806 LED strip

Product Description:

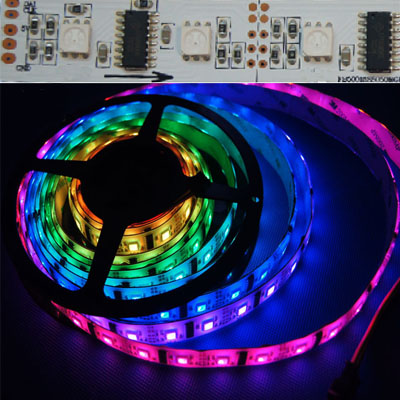

LPD8806 48 LEDs/m strip lights

Mode: BW5050RGB48T-8806-5V

Overview

LPD8806 pixelpusher 48 LEDs/m, 24pcs IC per meter, each one LED be used as a pixel and individually controllable, can be cut off each 2 LED. Very quick data speed: 20MHz. Widely controlled by Arduino / Rasberry.

Parameter:

1. DC5v, 14.4w/m

2. 48 LEDs/m, 48 pixels/m

3. 24pcs LPD8806 IC, 1 IC drives 2 LEDs as 1 segment

4. LPD8806 IC, grey scale= 128/color, 21 bits for RGB

5. SMD5050 RGB, Epistars chips

6. 4-PIN connectors on both ends

7. DC5V, CLK, Data, GND.

IP rating	Protection	Outer Size	Installation	Mode
IP40	None	L5000*W15	Double side tape	BW5050RGB48T-8806
IP65	Glue coating	L5000*W15	Double side tape	DW5050RGB48T-8806
IP67	Silicone tube	L5000*W17	screw + buckle	TW5050RGB48T-8806
IP68	Tube +glue filled	L5000*W17	screw + buckle	JW5050RGB48T-8806
