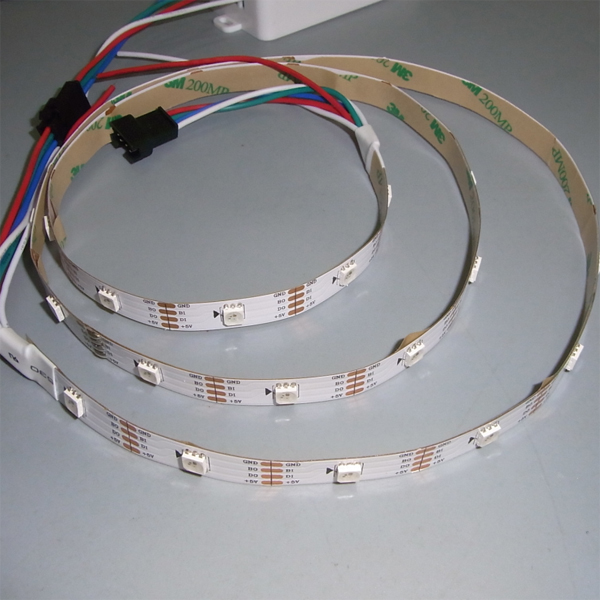

5v 30LEDs/m ws2813 Pixel RGB LED strip
Product Description:
5v 30LEDs/m ws2813 Pixel RGB LED strip
Parameter:
1. Input voltage: DC5v, MAX 9watts/meter;
2. LED QTY: 30 LEDs/meter, 150 LEDs/roll;
3. Pixel QTY: 30 Pixels/meter;
4. IC type: ws2813, the same protocol with ws2811/ws2812b;

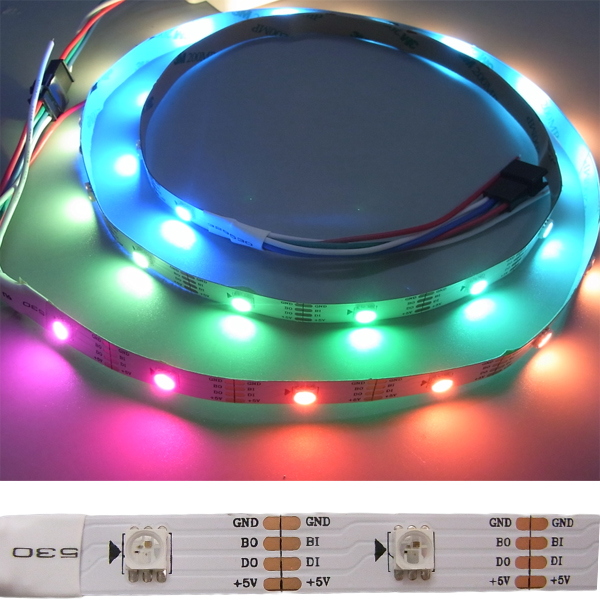

5. wires input: DC5v / Data1 / Data2 / GND;
6. Controller: all SPI based LED controller;
7. PCB width: 10mm;
8. PCB color: white or black;
9. Packaging: 5 meters/roll.
Advantage
-
Double data-pin: Any pixel's failure will not affect the data transmission, 1 broken≠ all broken;
-
Data-PIN: DI + BI
-
