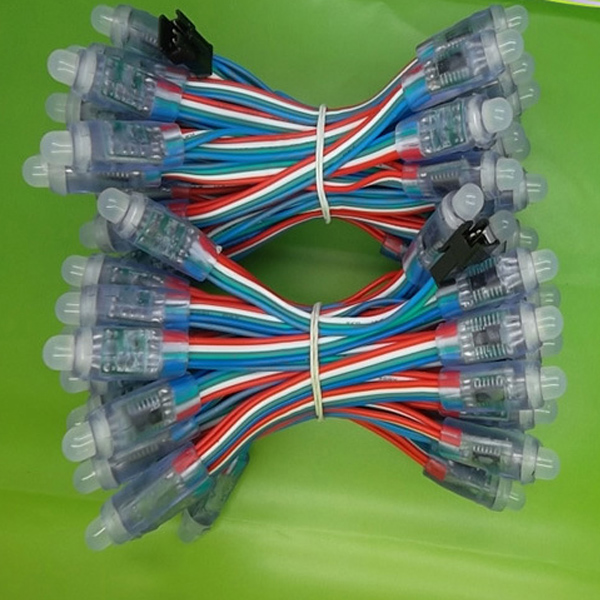

5v 12mm P9813 rgb pixel string lights
Product Description:
5v 12mm P9813 rgb pixel string lights
Mode: S67-P9813-5V
Addressable RGB Pixel string light, 1 IC chip(P9813) drives 1pcs F8 RGB LED, each LED are individually controllable. Full color changing to show text and animation. Punching diameter: 12MM.
Parameter
1. Input DC5v
2. Power: 0.3watt/pcs
3. Drive IC: P9813
4. Greyscale: 256/color, 24 bits for RGB
5. wires out: DATA, CKL, GND, Vcc+
6. Packaging: 50pcs/string
7. Wires length: 10CM
8. Wire color: Red+white+green+blue, all white, all black, all green.
Application
1. Holiday decoration
2. LED sign making
P9813 specification datasheet: http://www.pixel-leds.com/pdf/2016-4-16-1-33-26.pdf
