DMX-PWM 3CH 4A RGB LED decoder
DMX-PWM 3CH 4A RGB LED decoder
Product Description:

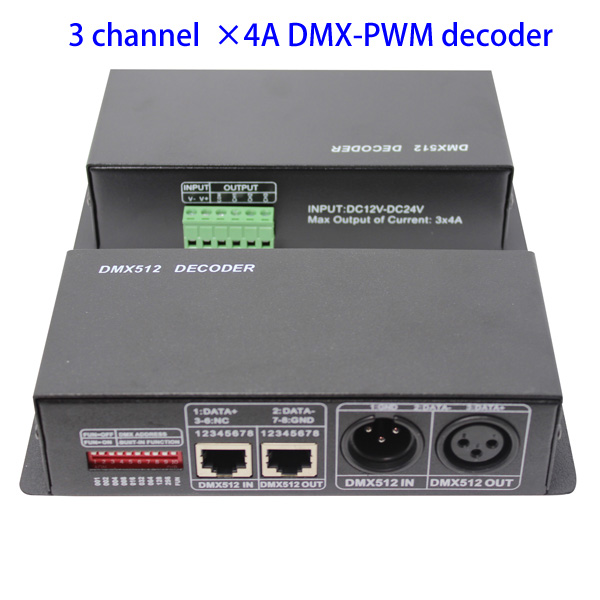

DMX-PWM 3CH 4A RGB LED decoder
DMX-PWM-803-4A


Overview

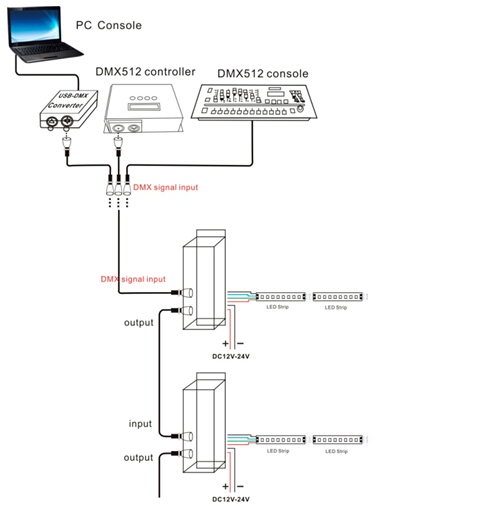

DMX to PWM RGB LED decoder, constant voltage 5A. Input DMX512 signal, output PWM to drive RGB LED strip.


Parameter

1. DC12-24v, 144W/288W(12V/24V)

2. 4A × 3 channel, it can drive MAX:
     1): 10 meters of DC12v/SMD5050/RGB/60 LED strip
      2): 20 meters of DC24v/SMD5050/RGB/60 LED strip

3. DIP switches to set DMX address from 1 to 512

4. 1pcs of decoder takes 3 channels/address, XLR/3pin IN and OUT OR RJ45

5. Size: L165×W68×H40mm
