DC24V 80mm DMX512 addressable RGB pixel dot light module
Product Description:

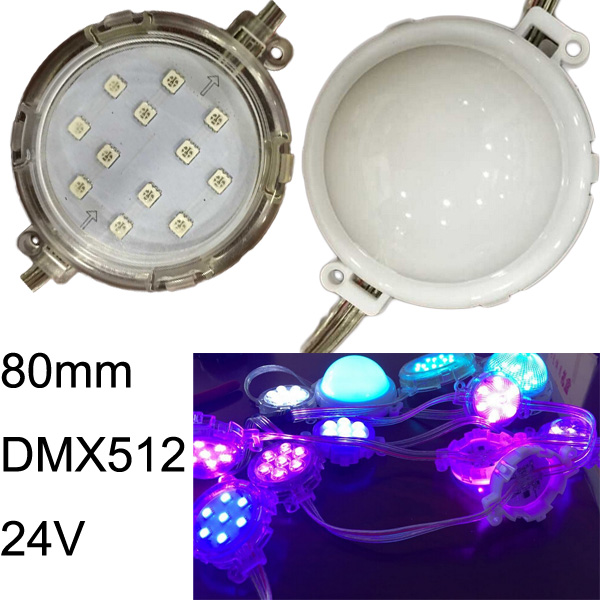

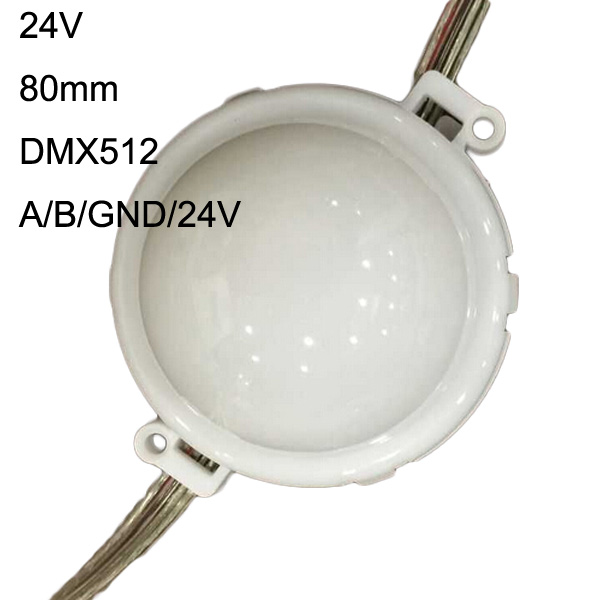

DC24V 80mm DMX512 addressable RGB pixel dot light module
D80S5050RGB12T-DMX-12V
D80S5050RGB12T-DMX-12V

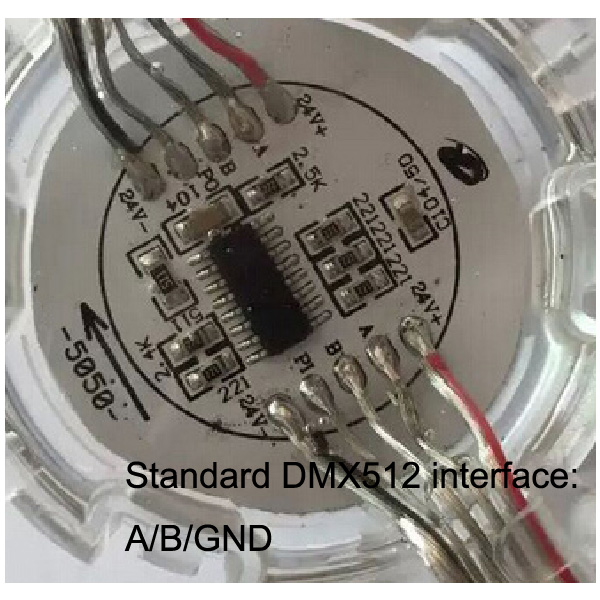

80MM diameter DMX512 addressable programmable pixel LED dot light module, with standard DMX512 interface: A/B/GND/, compatible with all DMX512/1990 controller and software.
Parameter
1. DC24v, 3 watts/pcs
2. 12pcs of SMD5050 RGB
3. Diameter: 80MM, clear or milky cover
4. Chipset: DMX512/1990 based, papallel signal connection(continue transferring from breakpoint)
5. Interface: A/B/GND/24V/PI
6. Address setting: Manual
7. 170pcs per universe
8. 10pcs/string or at your request
9. Waterproof wires.
