DC24v 80MM 6PCS 5050 ucs1903 addressable LED module
Product Description:
DC24v 80MM 6pcs 5050 ucs1903 addressable RGB LED module
Mode: D80C6T-ucs1903-24V (clear housing)
Mode: D80M6T-ucs1903-24V (milky housing)
Mode: D80M6T-ucs1903-24V (milky housing)

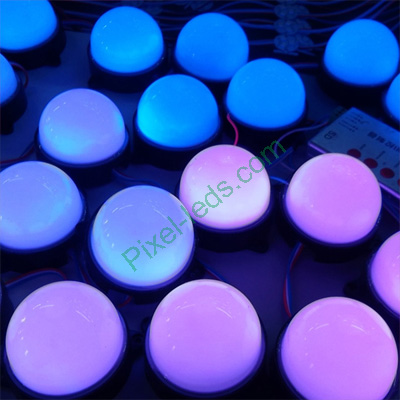

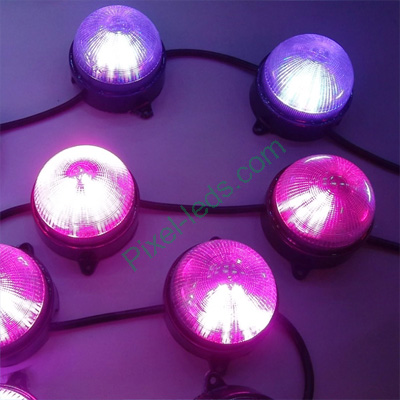

PVC milky/clear housing ucs1903 pixel dot light, 1pcs of ucs1903 IC drives 6 LEDs SMD5050 RGB and each module can be controlled individually, it is easy to screw onto the surface.
Parameter
1. Input Voltage: DC24v, MAX 1.44 watts/pcs
2. Driver IC: ucs1903 / SPI protocol
3. Greyscale: 256/color, 24 bits for RGB
4. 6pcs of SMD5050 RGB

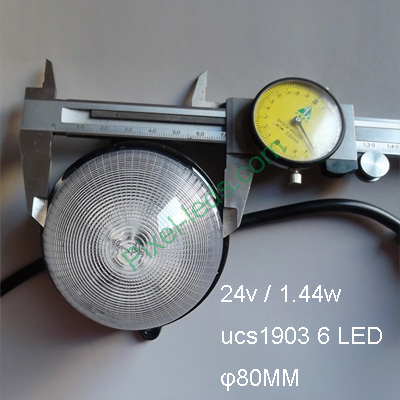

5. Size: Diameter= 80mm
6. DATA, VCC+, GND
7. Waterproof connectors at both ends.
It can be controlled by SPI controller and DMX512 controller.
Parameter
1. Input Voltage: DC24v, MAX 1.44 watts/pcs
2. Driver IC: ucs1903 / SPI protocol
3. Greyscale: 256/color, 24 bits for RGB
4. 6pcs of SMD5050 RGB
5. Size: Diameter= 80mm
6. DATA, VCC+, GND
7. Waterproof connectors at both ends.
It can be controlled by SPI controller and DMX512 controller.
