RGBW 4 in 1 DMX512 LED wall washer
RGBW 4 in 1 DMX512 LED wall washer
Product Description:

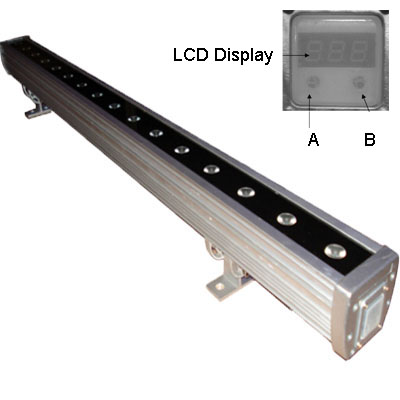

 RGBW 4 in 1 DMX512 LED wall washer
Mode: WW-DMX-RGBW16T

DMX LED wall washer, 16 × RGBW × 8w, 4 in 1. Support Standard DMX512/1990 protocol, there are four operation modes: DMX 512 protocol, auto and master/slave,operating in various modes to form different led effects.



TECHNICAL SPECIFICATIONS

1. Power supply: 90-240V 50/60HZ

2. Power consume:MAX. 130W

3. IP65 waterproof

4. Equipped with 16 pcs of 8W high MCD RGBW LEDs

5. 100,000 hours of led life

6. Beam angle:45°

7. DMX-512-connection: 3-pin XLR

8. Power connection: 3-pin XLR

9. Dimensions: 1100*78*98mm

10. Weight:4.0kgs


Four control modes:

1) DMX address mode: address from 1-512

2) DMX color segment modes , Press A to UP and B to Down. ( 0--6 )

3) Master -- Programs
Press A to UP and B to Down. ( 00--19 )

4) Master -- Speed
Press A to UP and B to Down. ( 0--9 )

Specification download at: https://app.box.com/s/9nw4pa5215t5r4auymiq
Video at: http://youtu.be/S1UBa-PuKt0
